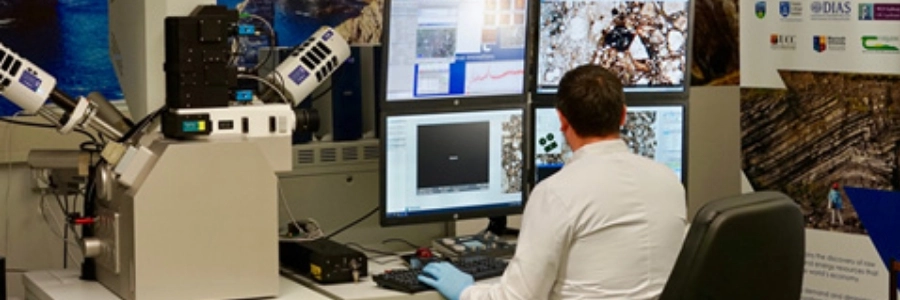

Tescan Tiger

Facility	Tescan Tiger
Bookings and Enquiries	PGUYETT@tcd.ie
Staff Contact	Dr. Emma Tomlinson
Research Assistant	Dr. Paul Guyett
Location	Basement, 4/5 East End, TCD
Instrument	Tescan TIGER MIRA3 FEG-SEM equipped with motorised backscatter electron and colour cathodoluminescence detectors, two Oxford Instruments Ultim 170 mm2 detectors, Unity BEX detector and a WITec RISE Raman system. Fully quantitative point analysis (Astimex 53 calibration), superfast elemental mapping, mineral liberation analysis, and Aztec Live mapping with Oxford Instruments Aztec software, correlative Raman mapping.
Samples	Holds 2 x 2.5cm round epoxy mounts and 1 x 2.5 cm x 7.5 cm thin sections or 4 x 2.5cm round epoxy mounts Principally used for elemental analysis of polished thin section samples or imaging using BSE or CL detectors. Examples of samples analysed include silicate minerals, tephra, sulphides, apatite.
Additional information	The Tescan TIGER is a custom-built analytical instrument involving three companies from three countries; Tescan in the Czech Republic, Oxford Instruments in the United Kingdom, and WITec in Germany.
Selected lab. publications	Paul C. Guyett, David Chew, Vitor Azevedo, Lucy C. Blennerhassett, Carolina Rosca, Emma Tomlinson; Optimizing SEM-EDX for fast, high-quality and non-destructive elemental analysis of glass. J. Anal. At. Spectrom. 2024; 39 (10): 2565–2579. https://doi.org/10.1039/d4ja00212a Ubide T. and Kamber B.S. (2018): Volcanic crystals as time capsules of eruption history. Nature Communications 9, 326. Henrichs I.A., O’Sullivan G., Chew D.M., Mark C., Babechuk M.G., McKenna C., Emo R. (2018). The trace element and U-Pb systematics of metamorphic apatite. Chemical Geology, 483, 218–238. Kaeter D., Barros R., Menuge J.F., Chew D.M. (2018). The magmatic–hydrothermal transition in rare-element pegmatites from southeast Ireland: LA-ICP-MS chemical mapping of muscovite and columbite–tantalite. Geochim. Cosmochim. Acta, 240, pp. 98-130. Ansberque, C., Mark, C., Caulfield, J.T., Chew, D.M. (2019). Combined in-situ determination of halogen (F, Cl) content in igneous and detrital apatite by SEM-EDS and LA-Q-ICPMS: A potential new provenance tool. Chemical Geology, 524, pp. 406-420. Zhao L. et al., (2020). Tracing mineralization history from the compositional textures of sulfide association: A case study of the Zhenzigou stratiform Zn-Pb deposit, NE China. Ore Geology Reviews, Volume 126, November 2020, 103792.
