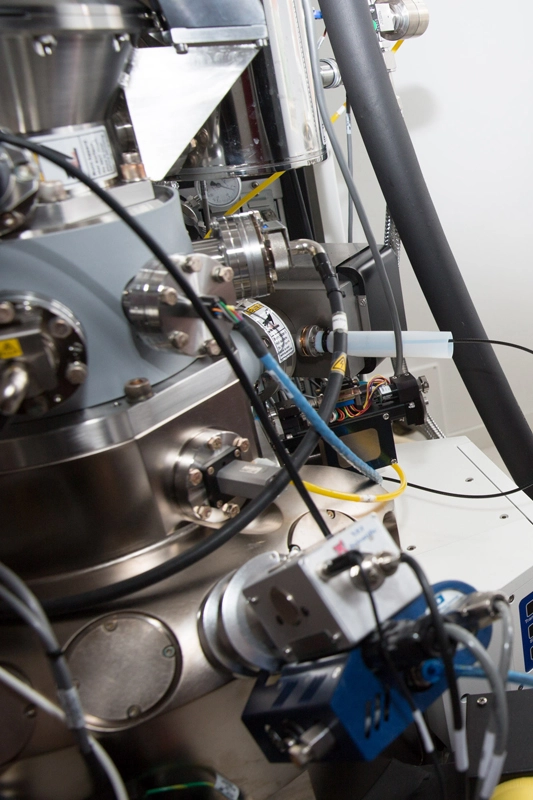

Zeiss ORION Nanofab

Seamlessly switch between Ga- for removal of massive material, Ne- for high speed, high throughput nanofabrication, and He- for delicate, sub-10 nm nanofabrication, and high resolution imaging.
The tool is also well suited to imaging challenging sample sets such as polymer based systems and biological specimens, due to the absence of charging effects traditionally associated with SEM. The Nanofab is also equipped with both Raith Multibeam and Fibics beam-blanker controllers and software, enabling users to translate complex CAD drawings onto their sample, either through ion milling, or ionbeam lithography.

Technical Specifications

• Equipped with gallium, neon, and helium beams.
• Capable of 0.5 nm resolution.
• He- and Ne- ion lithography capabilities.
• Raith Multibeam & Fibics beamblanker controllers.

Papers

• "Approaching the theoretical limit for reinforcing polymers with graphene",  Peter May, Umar Khan, Arlene O'Neill and Jonathan N Coleman, J. Mater. Chem., 2012, 22, 1278-1282.
• "Polymer reinforcement using liquid-exfoliated boron nitride nanosheets", Umar Khan, Peter May, Arlene O'Neill, Alan P. Bell, Elodie Boussac, Arnaud Martin, James Semple and Jonathan N Coleman, Nanoscale, 2013, 5, 581-587.
• "Reinforcement in melt-processed polymer–graphene composites at extremely low graphene loading level", Oana M. Istrate, Keith R. Paton, Umar Khan, Arlene O'Neill, Alan P. Bell, Jonathan N Coleman, Carbon, 2014, 78, 243-249.
• "Nanopatterning and Electrical Tuning of MoS2 Layers with a Subnanometer Helium Ion Beam", Daniel S. Fox, Yangbo Zhou, Pierce Maguire, Arlene O'Neill, Cormac Ó'Coileáin, Riley Gatensby, Alexey M. Glushenkov, Tao Tao, Georg S. Duesberg, Igor V. Shvets, Mohamed Abid, Mourad Abid, Han-Chun Wu, Ying Chen, Jonathan N. Coleman, John F. Donegan, and Hongzhou Zhang, Nano Lett., 2015, 15, 8, 5307-5313.
• "Imaging of human colon cancer cells using He‐Ion scanning microscopy", D. Bazou, G. Behan, C. Reid, J.J. Boland, H.Z. Zhang, Journal of Microscopy, 2011, 242, 3, 290-294.
